Traffic Monitoring for AndroidField validation pendingKnow your network usage - and the evidence behind it.
Traffic Monitoring measures how much data an Android device used, when and on which network, while preserving attribution confidence, continuity gaps and explicit Unattributed usage.
DECIDE
How much network behavior can Android support with trustworthy attribution?
The project separates usage totals from provenance. When attribution context is ambiguous or continuity breaks, the evidence remains explicitly Unattributed instead of being forced into a confident story.
"Measure before claiming. Preserve uncertainty. Make results auditable."
Android network observability should not rely on opaque cloud meters or unverified background assumptions. When attribution context is ambiguous, evidence must stay explicitly Unattributed.
What Makes It Different
Traffic Monitoring separates usage totals from attribution provenance and technical diagnostics.
What happened?
How much data did this Android device use, when, and on which Wi-Fi / hotspot / mobile network?
- •Total bytes used, download vs upload breakdown
- •Timeframe filtering (Today, 7d, 30d, This month, Custom)
- •Per-network ranking & peak detection
How do we know?
How much of that usage is supported by trustworthy evidence, and where did measurement continuity break down?
- •Deterministic attributed vs unattributed intervals
- •Evidence Coverage percentage calculation
- •Measurement Health states (Good, Limited, Degraded)
- •Continuity gap tracking & discarded interval logs
BUILD
Build provenance into the data pipeline, not only into the UI copy.
Platform signals, raw evidence, deterministic attribution, derived product state and export are separated so the final interface can explain both the usage and how that conclusion was produced.

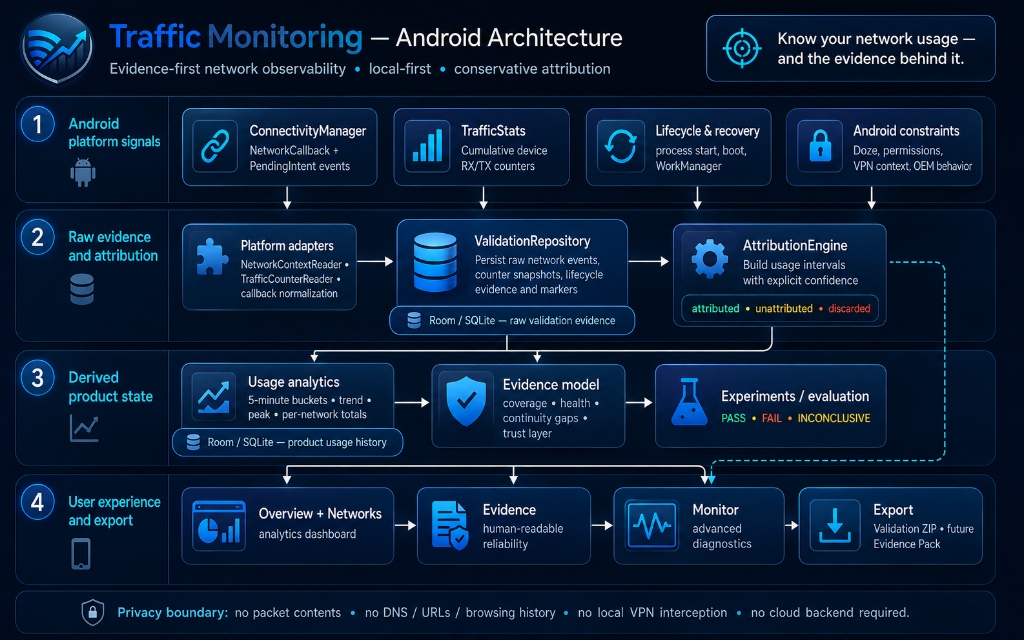

4-Tier Local-First Architecture
Decoupled data pipeline from system callbacks down to user analytics and ZIP export.
Android Platform Signals
Captures interface transitions, device RX/TX counter statistics, process lifecycle events, and coarse safety-net recovery.
Raw Evidence & Attribution Engine
Normalizes network metadata, persists raw un-summarized observations, and computes interval confidence (attributed, unattributed, discarded).
Derived Product State
Allocates accepted attribution intervals into fixed 5-minute time windows and deterministically evaluates Evidence Coverage % and Health.
User Experience & Export Pipeline
Renders Jetpack Compose UI surfaces and packages engineering diagnostic ZIPs or future Evidence Packs.
TEST
Expose uncertainty as a first-class product state.
Overview, Networks, Evidence and Monitor surfaces test whether usage, provenance and engineering diagnostics can remain understandable without collapsing them into one confidence level.
Product UX Surfaces
A clean, restrained UX boundary separating usage, evidence provenance, and lower-level diagnostics.

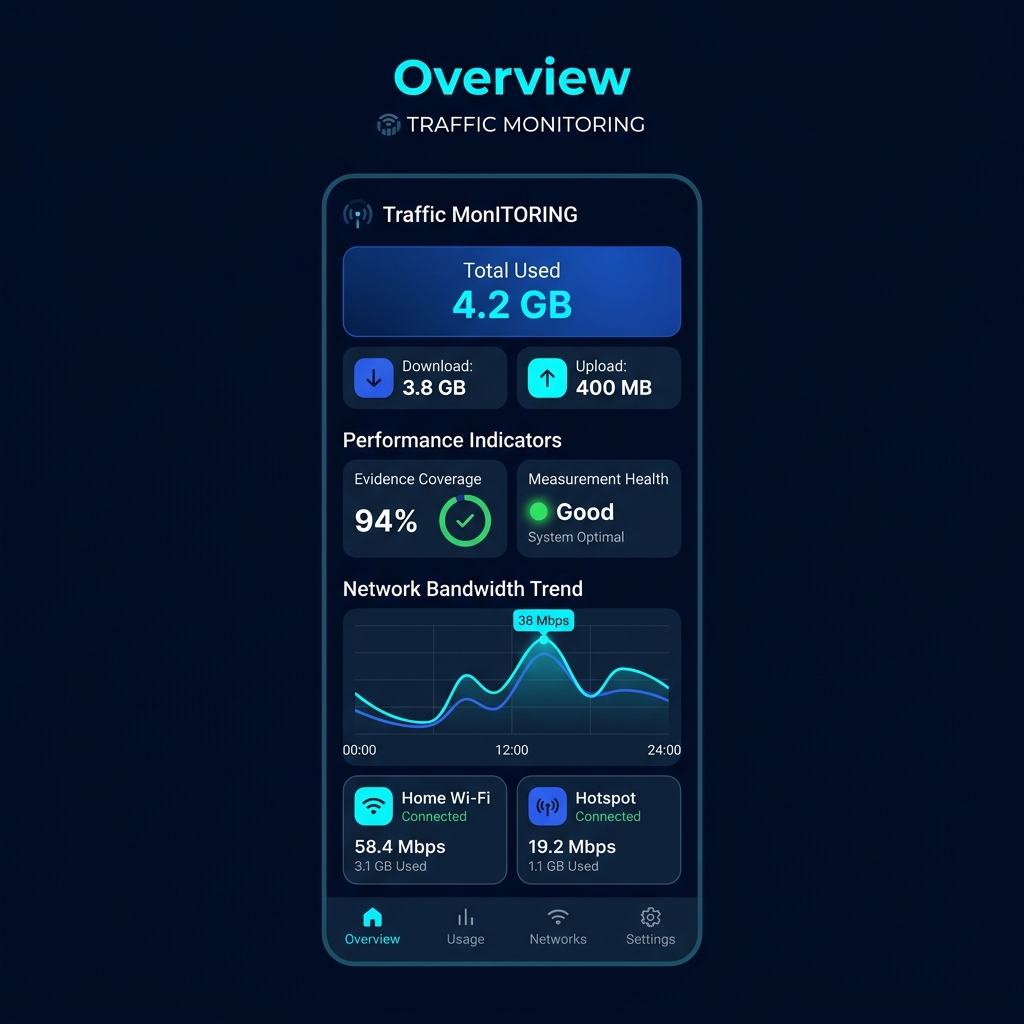

Overview
"What is my device network status and top-line usage?"
Current network state, total bytes used, download/upload breakdown, usage trend, peak traffic, top networks, and compact Evidence summary card.
Networks
"Which networks account for usage?"
Ranked list of network contexts with human-readable network names, transport type (Wi-Fi, Hotspot, Cellular), byte percentage, and explicit Unattributed traffic.
Evidence
"How trustworthy is the attribution data?"
Human-readable provenance screen displaying Evidence Coverage %, Measurement Health status with explicit reasons, attributed vs unattributed breakdown, continuity gaps, and discarded interval summaries.
Monitor
"How did Android measure the network?"
Technical diagnostics console surfacing raw ConnectivityManager callbacks, TrafficStats counter snapshots, attribution intervals, recovery logs, and engineering ZIP export.
MEASURE
Measure attribution coverage and measurement health separately.
Evidence Coverage explains how much accountable usage was attributed; Measurement Health captures continuity and integrity. Field-validation gaps remain explicit in the maturity model.
Evidence Coverage v1 & Measurement Health
Coverage measures attribution ratio; Health measures measurement continuity and integrity.
accountedBytes = attributedBytes + unattributedBytesEvidence Coverage % = attributedBytes / accountedBytesℹ️ If there is no accountable usage in the selected period, the app explicitly displays "Not enough data" rather than manufacturing 100% coverage.
Good
Measurement was continuous with verified network identity and clean counter deltas.
Limited
Some unmonitored gaps occurred or minor counter wrap-arounds required discarding.
Degraded
Significant gaps or background interruptions degraded overall attribution confidence.
Android Privacy & Trust Boundaries
What Stays Protected & Local
- Operates 100% on-device without cloud dependencies.
- Records NO packet contents, payloads, or message text.
- Records NO DNS queries, URLs, or browsing history.
- Requires NO local VPN traffic interception for v1.
- Uses event-driven PendingIntent callbacks rather than a forced permanent Foreground Service.
What Is NOT Claimed Today
- Does not claim 100% background reliability across all Android OEM custom ROMs prior to M5 field runs.
- Does not claim per-app network locality attribution in v1.
- Does not transform missing evidence into a PASS privacy verdict.
Current Project Maturity
Relationship to Android Local LLM Harness
Harness explores reusable on-device AI inference execution on Android. Traffic Monitoring explores how Android can document network conditions and attribution uncertainty around local software. Neither project requires the other to remain useful.
Android Local LLM Harness
On-device LLM inference runtime, GGUF/llama.cpp execution, and memory/thermal profiling.
Traffic Monitoring Android
Device network usage measurement, attribution confidence, Evidence Coverage, and diagnostic export.
✓ Implemented Capabilities
- ✓Persistence & export pipeline (M1A)
- ✓Counters & in-process evidence engine (M1B)
- ✓Deterministic attribution & 5-minute bucket store (M3)
- ✓Product UX (Overview, Networks, Evidence, Monitor) (M4)
- ✓Evidence Coverage v1 & Measurement Health (E1)
⏳ Field Validation Pending
- ⏳PendingIntent background behavior when process absent (M1C)
- ⏳48–72h Standard-mode physical device run (M1E)
- ⏳Deterministic attribution replay acceptance (M2)
- ⏳Multi-OEM device matrix validation (M5)
🔮 Planned Milestones
- ❖Human-readable Evidence Timeline & Evidence Pack (E2)
- ❖Experiment Mode for bounded hypothesis runs (E3)
- ❖Deterministic Assertions (PASS / FAIL / INCONCLUSIVE) (E4)
DECIDE AGAIN
Do not turn emulator success into a field-reliability claim.
The next decision is constrained by physical-device evidence: core attribution and Evidence Coverage are implemented, while background behavior, long-duration runs and multi-OEM reliability still require field validation.
CURRENT DECISION
Preserve uncertainty until Android field evidence closes the gap.
Traffic Monitoring Android already implements deterministic attribution, 5-minute buckets, product surfaces and Evidence Coverage. PendingIntent background behavior, 48–72h physical-device runs and a multi-OEM matrix remain validation work, so the project does not claim universal background reliability or transform missing evidence into a PASS verdict.
- Core evidence model and product UX are implemented
- Physical-device background validation is still required
- Missing evidence remains Unattributed or inconclusive, never silently promoted
Two Parallel Development Tracks
Separate roadmaps track Android system measurement reliability (M) and evidence product capability (E).
Android Measurement Reliability
Persistence & Export
Room persistence and engineering validation ZIP export pipeline.
Counters & In-Process Evidence
TrafficStats byte delta reader & live in-process callbacks.
PendingIntent Background Monitoring
Manifest BroadcastReceiver & PendingIntent background network availability.
48–72h Field Protocol
Standard-mode physical device run across sleep, doze, and network transitions.
Multi-OEM Device Matrix
Validation across AOSP/Pixel, Samsung, and aggressive-background OEM devices.
Evidence-First Product Roadmap
Positioning & Semantics
Evidence-first positioning, scope, and truthfulness contract.
Coverage & Health
Evidence Coverage v1 %, Measurement Health evaluation, and explicit Unattributed state.
Human-Readable Evidence Pack
Human-readable Evidence Timeline & verifiable portable Evidence Pack.
Experiment Mode
Bounded evaluation runs for testing local software network behavior claims.
Deterministic Assertions
Truthful test outcomes: PASS, FAIL, or INCONCLUSIVE based on evidence threshold.
Measure the usage. Preserve how you know.
Explore the implementation, run the emulator debug script, or contribute physical device evidence across Android and OEM conditions.
